Modular Video Conversion System
Real time conversion of resolution, aspect ratio, and frame rate for high definition and standard definition video.

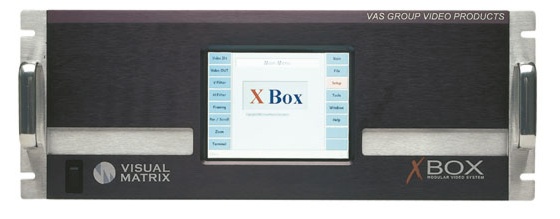

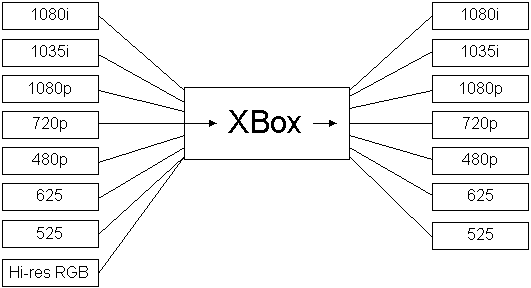

The XBox offers unparalleled flexibility and performance in a video converter. The XBox can be configured to convert between multiple video formats including HDTV, standard definition digital video and computer RGB video. The XBox’s advanced modular design permits users to configure a system to their specific requirements and later add new functionality with the addition of new video input, output and processing modules.

The XBox has an extensive list of standard features including complete aspect ratio controls and advanced image enhancement filters. The aspect ratio controls include anamorphic stretch, separate horizontal and vertical controls for black bars as well as zoom, and smooth pan/scan controls. You can create your own aspect ratio presets or use the factory presets.

The XBox’s unmatched image quality is achieved via proprietary conversion technology that evaluates the video source characteristics and selects the appropriate filter and conversion algorithms. Separate video modules perform each major signal processing function. This permits simple upgrades to incorporate any future video standards.

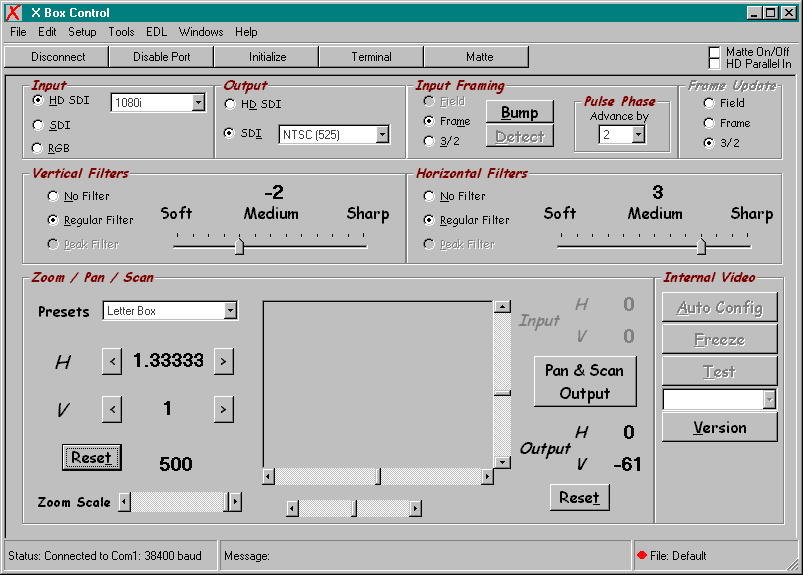

Click to view a screen capture of the XBox control software.

INPUT

  • HD-SDI (SMPTE 292M) 480p, 720p, 1080i, 1035i, 1080p24, 1080i/50Hz
  • HD Parallel - same formats as HD-SDI
  • SDI (SMPTE 259M - 393M) 525, 625, 625/24
  • RGB (high resolution inputs)
  • Composite and HD genlock
  • Frame Pulse and A Pulse

OUTPUT

  • HD-SDI (SMPTE 292M) 480p, 720p, 1080i, 1035i, 1080p24
  • HD Parallel - same formats as HD-SDI
  • SDI (SMPTE 259M - 393M) 525, 625, 625/24
  • Composite and HD sync output
  • Frame Pulse and A Pulse

MAJOR FEATURES

  • HDTV upconversion & downconversion
  • HD to HD format conversion
  • 525 to/from 625 format conversion
  • Resolution and frame rate conversion
  • Aspect ratio conversion
  • Computer RGB to video conversion
  • Film mode with 3:2 and 24fps capability
  • Intuitive graphical control interface
  • Modular design for simple upgrades
  • Advanced proprietary digital filters

GENERAL

  • 4RU - 19" rack mountable
  • Weight: 30lbs. prox.
  • Control Ports: RS-232 and RS-422
  • 1 year parts and labor warranty

Note that some of the specifications and features listed are only available as part of specific packages or options.
Specifications subject to change without notice
