Scan Converter
Real time conversion of high resolution RGB to 525/625 digital video and HDTV video.

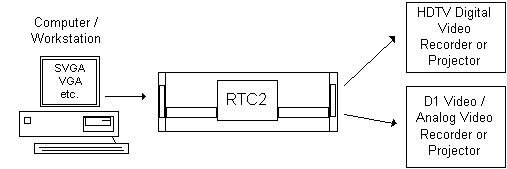

The RTC2 creates broadcast quality video from PC, MAC and workstations with unequaled clarity and image detail. Designed for applications where image quality is of utmost importance, the RTC2 incorporates advanced signal processing technology and powerful image manipulation functions.

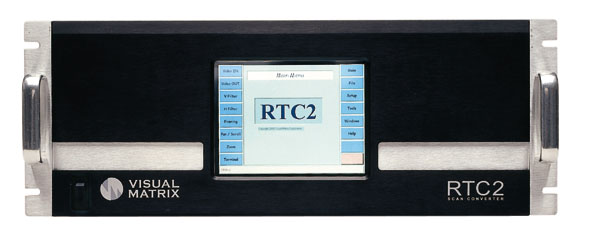

The RTC2 is also easy to use with automatic sync type detection and an optional touch screen front panel. The RTC2 scan converter is available with HD digital video outputs. The high resolution that HDTV provides ensures that even small graphics and fonts in the high resolution source are preserved. By connecting the RTC2’s HD digital outputs to a HD recorder, a mirror-like copy of the high resolution source can be made.

The RTC2 features zoom and smooth pan/scan capability for camera like movements. Separate horizontal and vertical filters provide an extra level of control for the elimination of flicker, alias and Moiré patterns. The RTC2 is available with analog video, D1 and HDTV digital video outputs.

INPUT

  • Analog RGB inputs 30-90 kHz horizontal scanning range (15-90 kHz available as an option)
  • Accepts sync on green, composite, or H&V sync
  • Genlocks to composite or HD sync

OUTPUT

  • SDI (SMPTE 259M) 525 and 625 line
  • Composite sync output
  • HD-SDI Option (SMPTE 292M) 480p, 720p, 1080i, 1035i, 1080i/50Hz, 1080/24p
  • HD Parallel Option (SMPTE 274M) same formats as HD-SDI
  • Analog video outputs Option - composite, S-VHS, component, and RGB.

MAJOR FEATURES

  • Smooth pan/scan with variable speed control
  • Zoom control up to 1600%
  • Automatic configuration to source
  • HDTV ready
  • 10 bit video path and 12 bit processing
  • Touch screen front panel (option)

GENERAL

  • 4RU - 19" rack mountable
  • Weight: 30lbs. prox.
  • Control Ports: USB, RS-232 and RS-422
  • 1 year parts and labor warranty

Note that some of the specifications and features listed are only available as part of specific packages or options.
Specifications subject to change without notice
