Up Conversion

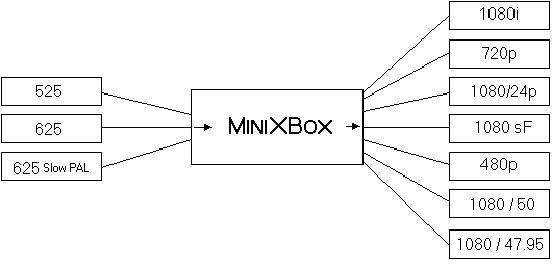

Real time conversion of 525/625/625 Slow PAL to HDTV digital video.

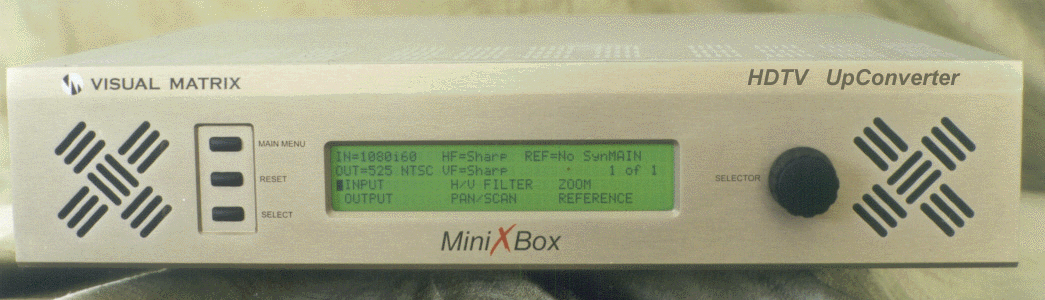

The MiniXBox is a high quality HDTV Up Converter that transforms standard definition D1 serial digital video in either 525, 625 or 625 Slow PAL formats to HDTV digital television. The MinXBox features many powerful real time image enhancement controls. The MiniXBox has spatial filters in the vertical and horizontal domains for image enhancement as well as real time Pan, Scroll and Zoom functions for full 4:3, 16:9 and anamorphic stretch aspect ratio control. You can create your own aspect ratio presets or use the factory presets. The MiniXBox includes a color bar pattern generator with over 10 color bar patterns. All control functions of the MinXBox can be controlled via a LCD front panel or remote serial RS-232/RS-422 communications link.



Features

• Complete Aspect Ratio Adjustment
• Smooth Pan/Scan with variable Speed Control
• Zoom control up to 1600%
• User-defined presets
• Filters for anti-alias, flicker, Moiré removal
• Separate Horizontal and Vertical Filters
• 4 levels of horizontal and vertical filters
• Off-Speed PAL (625/23.976) Input and Output
• Control Software for remote operation
• Composite Sync Out
• Genlock
• 10 bit video I/O and 12 bit processing

Specifications
